CO2 Probe Operation Instructions

Tim

Last Update 9 месяцев назад

Before you begin utilizing the CO2 probe, it's essential to configure it on the console available at https://console.ubibot.com.

  1. Navigate to the device you intend to use with the CO2 probe and access the settings page on the console.

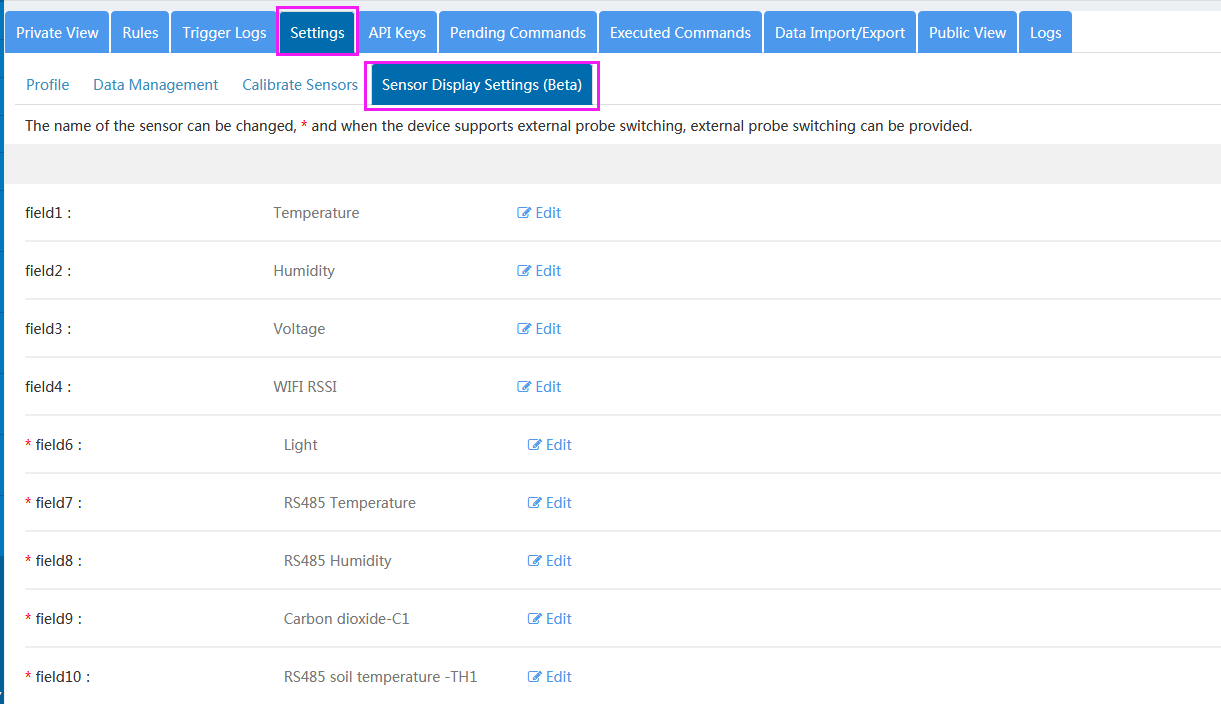

  2. Select “Sensor Display Setting”.

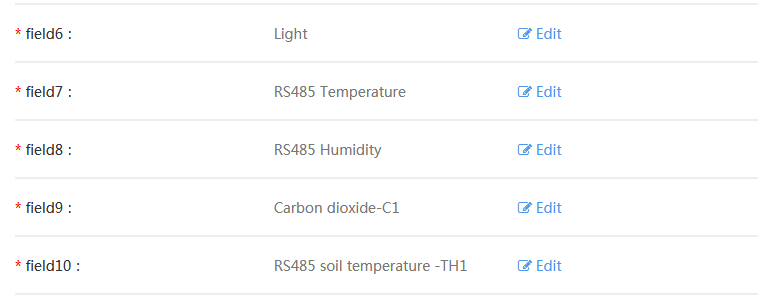

3. Choose a sensor field (field7 - 10) to edit. Note that fields 1 - 6 are designated for built-in sensors, while fields 7 - 10 are for external sensors.

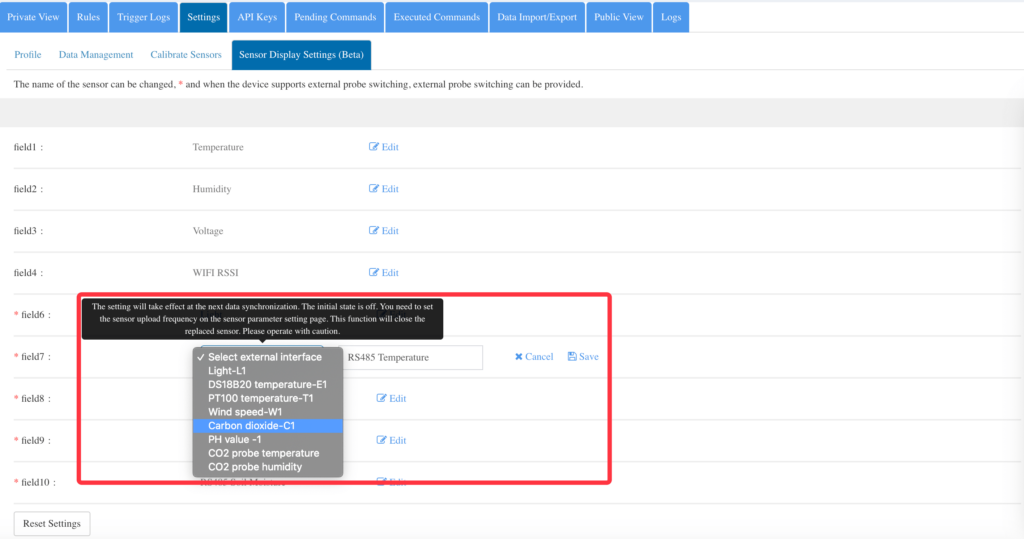

4. From the dropdown menu, select "Carbon Dioxide-C1" and click "Save".

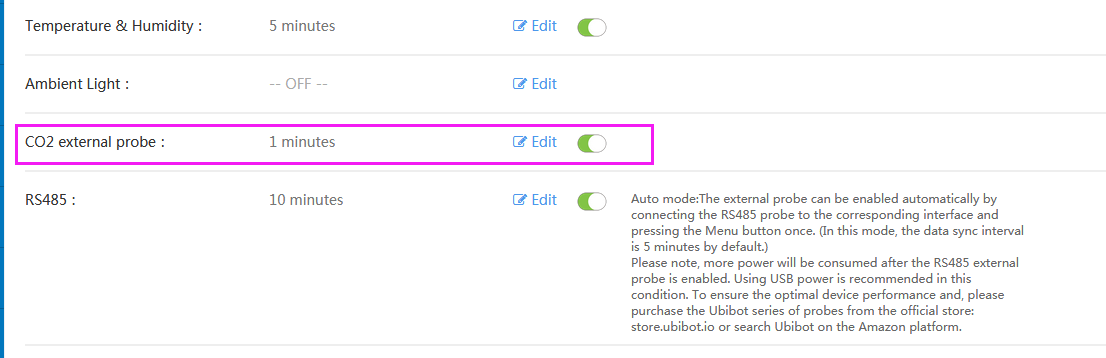

5. Proceed to the "Data Management" page, where you can configure the data measurement frequency for the external Carbon Dioxide probe.
